How To Detail Strip An M1 Garand Trigger Group


Detail stripping the trigger group requires the removal of the safety.

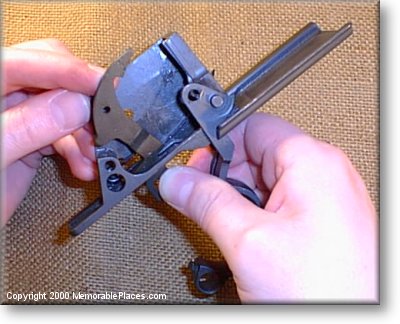

In order to free the Safety from the housing - gently push the Safety from the top to the right hand side of the trigger housing.

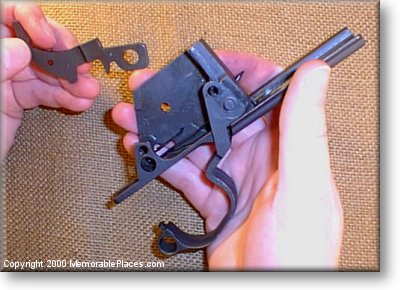

When the Safety disengages from the clip ejector spring - simply lift it out.

One of the most annoying parts of the M1 to get back in place once it is removed is the Clip Ejector Spring. This is particularly true if your trigger housing is worn where the spring rides against the bottom of the housing.

Because of this we do not always remove this spring.

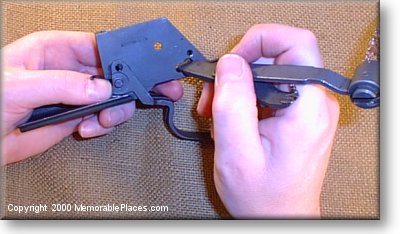

When we DO choose to remove the Clip Ejector Spring, we simply take the screwdriver part of the combo tool and press it firmly through the slotted opening on the left side of the trigger housing. The Clip Ejector Spring will 'pop' free of its mounting without undue force.

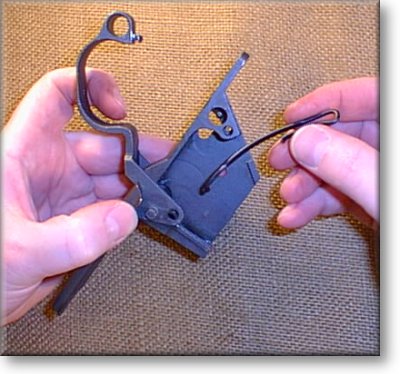

When it disengages from its mounting, simply pull the Clip Ejector Spring out of the trigger housing.

The Hard Part Is Over.. now to finish...
